Upgrading Your Base Station: Yagi vs. Omni

A Yagi-Uda antenna—commonly just called a Yagi—is a directional, resonant parallel-element antenna. It consists of a single driven element (typically a folded or straight half-wave dipole connected to your feedline), a slightly longer reflector element behind it, and one or more progressively shorter director elements in front of it.

Even though it is a passive component that cannot actually create RF energy, a Yagi achieves high gain by focusing its radiated power into a narrow, targeted beamwidth, rather like focusing a flashlight beam. For GMRS operators working in the 467 MHz repeater input and 462 MHz main frequencies, a Yagi provides significant forward gain and a high front-to-back (F/B) ratio, meaning it aggressively rejects signals originating from behind or beside the array.

The Ideal Scenarios for a Yagi

• Establishing Point-to-Point Control Links: If you are setting up a remote base station to link back to a specific repeater hub, a Yagi is the gold standard. By aiming the antenna directly at the target repeater, you maximize your link budget and ensure a full-quieting signal over long distances.
• Overcoming Severe Terrain and Obstacles: When dealing with challenging geography—such as shooting a signal down a long, narrow valley or punching through dense foliage toward a specific valley town—the concentrated ERP of a Yagi can overcome path attenuation that would swallow an omnidirectional signal.
• Mitigating Co-Channel Interference: Because the GMRS spectrum is limited to 30 channels (including interstitial and repeater pairs), congestion is common. If your base station suffers from desensitization or interference from a nearby repeater on the same frequency pair, aiming a Yagi away from the offending source allows its high front-to-back ratio to null out the unwanted interference.
• Extending Fringe-Area Range: If your primary operating group or property is located in one specific direction from your base station, using a Yagi allows you to utilize your legal power limit much more efficiently, pushing a readable signal deep into areas where an omni would fade into the noise floor.

Key Considerations and Trade-offs While the gain advantages of a Yagi are undeniable, they come with mechanical and physical trade-offs. Because of their physical footprint, Yagis present a much higher wind load than vertical whips, requiring robust mast hardware and cross-booms—especially if you choose to mount them in a vertical polarization configuration (which is standard for GMRS to match handheld and mobile whips). Additionally, the narrow horizontal beamwidth means that any station or mobile unit outside of the antenna’s main lobe will experience severe attenuation. If your operating goals require flexible, multi-directional field communications, the Yagi’s greatest strength becomes its greatest limitation.

An omnidirectional antenna—commonly referred to as an “omni”—is designed to radiate and receive RF energy equally in all 360 degrees of the horizontal plane. In GMRS base stations, these are typically constructed as vertical collinear arrays enclosed in a heavy-duty fiberglass radome. By stacking multiple resonant elements vertically inside the housing, an omni compresses the signal’s vertical beamwidth toward the horizon.

Essentially, instead of wasting RF energy blasting straight up into the sky or down into the ground, a high-gain omni squashes the radiation pattern into a flat, disk-like shape. For a GMRS repeater or base station, this provides uniform, reliable coverage to every point of the compass simultaneously.

The Ideal Scenarios for an Omni

• Repeater Deployments: The core mission of a GMRS repeater is to serve as a central communication hub for a broad area. Whether it is mounted on a central rooftop, a tower, or a high hill, an omni antenna ensures that mobile units and HTs approaching from any direction can access the machine cleanly.
• Decentralized Local Nets: If you use your base station to participate in local emergency nets or chat with a scattered group of operators across your town or county, an omni is essential. It allows you to maintain simultaneous contact with multiple stations regardless of their bearing from your shack.
• Dynamic Mobile Tracking: When communicating with family or team members driving mobile rigs through urban or rural environments, their headings change constantly. An omni ensures you never drop a contact just because a mobile unit turned a corner or crossed into a different quadrant of your operating area.
• Simplicity and Stealth in Installation: Omnis feature a single, vertical profile that presents a uniform, low wind load from any direction. This makes them significantly easier to guy, mast-mount, and weatherproof compared to a bulky Yagi array.

Key Considerations and Trade-offs The main limitation of an omni is a direct consequence of its strength: because it listens to everything, it hears everything. An omnidirectional antenna cannot differentiate between a weak, distant HT and a high-power co-channel noise source or digital interference originating behind your station. Additionally, because its energy is distributed evenly across 360 degrees, its peak gain will always be lower than a Yagi of comparable size. If you need to span a massive distance in one specific direction, an omni will spread your 50-watt legal limit too thin to get the job done.

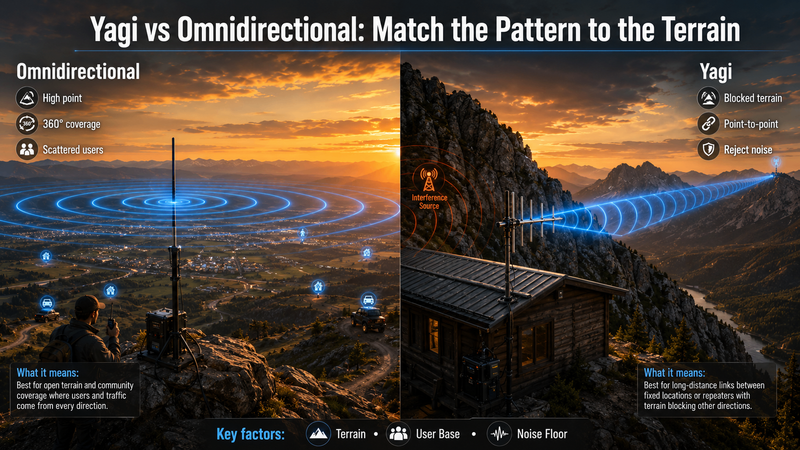

Selecting between a Yagi and an omnidirectional antenna ultimately comes down to matching your antenna’s radiation pattern to the geographic reality of your operating environment. To make the right investment for your GMRS base station or repeater, you need to weigh three primary factors: topology, user distribution, and localized RF noise.

Analyze Your Geography and Local Terrain

Before purchasing hardware, analyze the terrain layout between your station and your target contacts. An omni is the ideal choice if you are situated on a high point, such as a hilltop or the tallest roof in a relatively flat valley, allowing your signal to propagate naturally across the entire horizon. Conversely, a Yagi is the superior choice if you are nestled against a mountain ridge or deep inside a canyon; if a massive geological formation blocks RF propagation to your north, an omni will waste half your signal blasting into solid rock, whereas a Yagi allows you to redirect that energy toward the open pathways.

Map Your User Base: Central Hub vs. Point-to-Point

Defining the primary mission of your GMRS setup will quickly dictate your pattern requirements. If you are building a community repeater or a family base station designed to catch moving vehicles and handheld transceivers scattered across town, an omnidirectional antenna is mandatory because you cannot predict which direction a mobile unit will be traveling when a call comes in. However, if you are strictly linking to a specific distant repeater, participating in a fixed-point simplex net, or trying to bridge a gap between two permanent properties like a home and a remote cabin, a Yagi is the far more efficient tool.

Evaluate the Local Noise Floor

The UHF spectrum can be surprisingly crowded, especially in urban or suburban environments where commercial business band bleed-over or competing GMRS operators share the same repeater pairs. If your base station is plagued by desensitization or static from a nearby co-channel user, an omni will capture that noise from 360 degrees and degrade your receiver performance. Switching to a Yagi allows you to utilize the antenna’s physical construction as a shield, aiming the main lobe away from the source of the noise to drop the interference into a “null” while pulling weak signals out of the mud.

For the ultimate GMRS base station setup, many advanced operators choose not to compromise at all. Installing a high-gain omni for daily monitoring and local net control, alongside a vertically polarized Yagi on a coaxial switch for long-distance DX or dedicated repeater linking, gives you the absolute best of both worlds. Look at your local map, assess your target users, and choose the tool that shapes your RF footprint exactly where it belongs.
